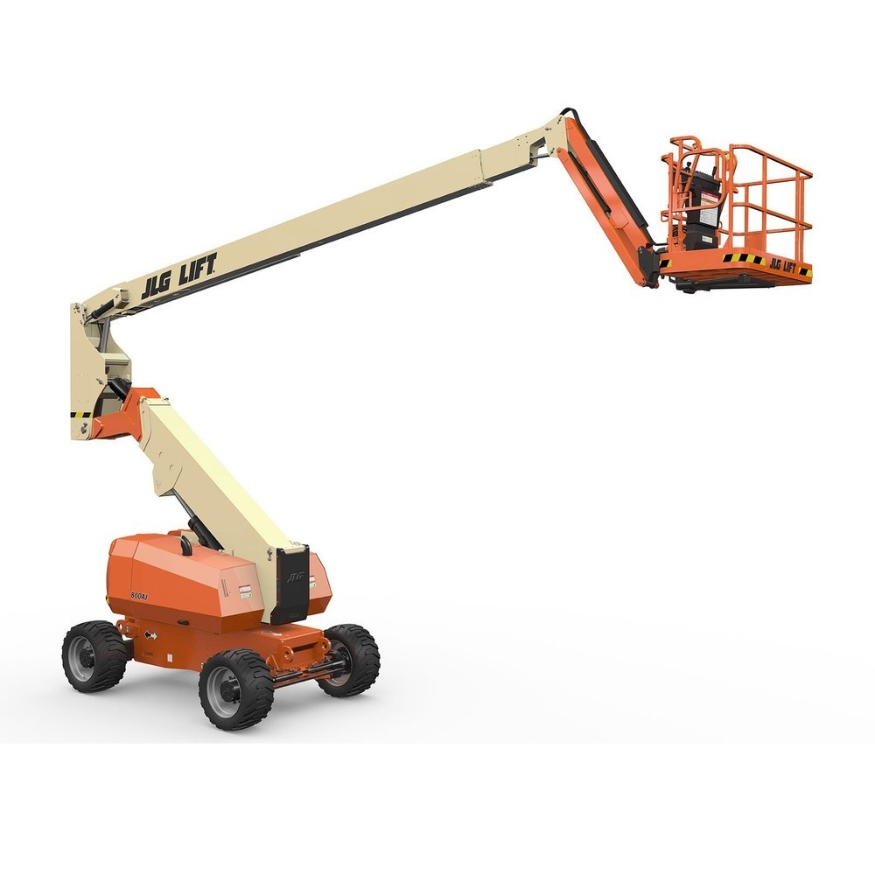

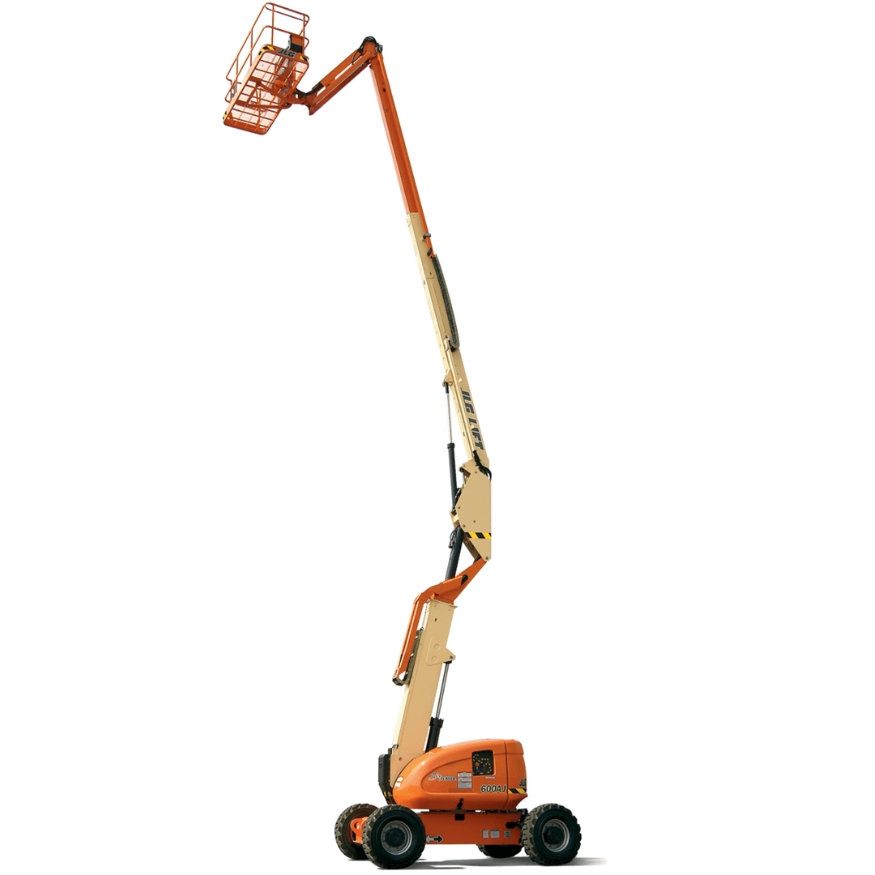

JLG 600AJ 4WD Diesel Articulated Boom Lift

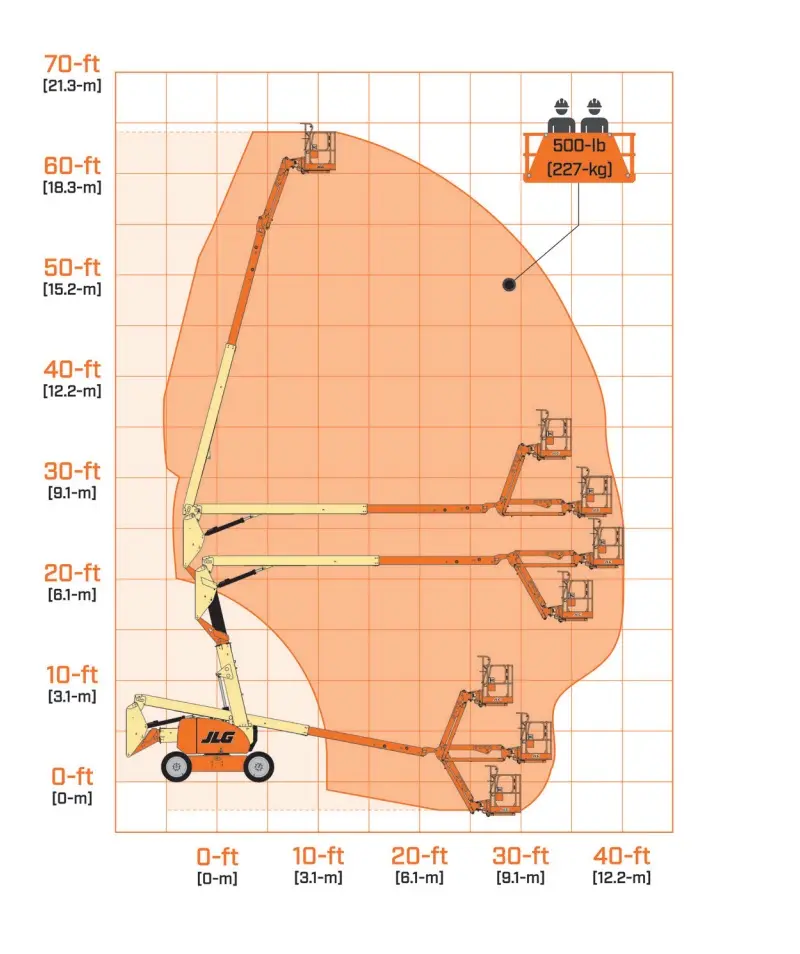

Diesel-powered articulating boom lift with 60 ft (18.3 m) working height and 30 ft (9.1 m) horizontal reach.
✅ 4-wheel drive configuration for rough terrain.
✅ 500 lb (227 kg) platform capacity.
✅ Diesel engine for outdoor use.
✅ 360° turret rotation system.
✅ Ideal for difficult access requiring obstacle clearance.
| 1 Day | 891.00 $ |
| 1 Week | 2,355.00 $ |
| 1 Month | 5,652.00 $ |
Specifications
| General | |
|---|---|
| Manufacturer | JLG |
| Boom Type | Articulated |
| Performance | |
|---|---|
| Horizontal Outreach | 39,9 ft |
| Up and Over Height | 26,7 ft |
| Swing | 360 Degrees Continuous |
| Platform Rotator | 180 Degrees Hydraulic |
| Power / Engine | |
|---|---|
| Fuel Type | Diesel |
| Fuel Tank Capacity | 113,6 L |

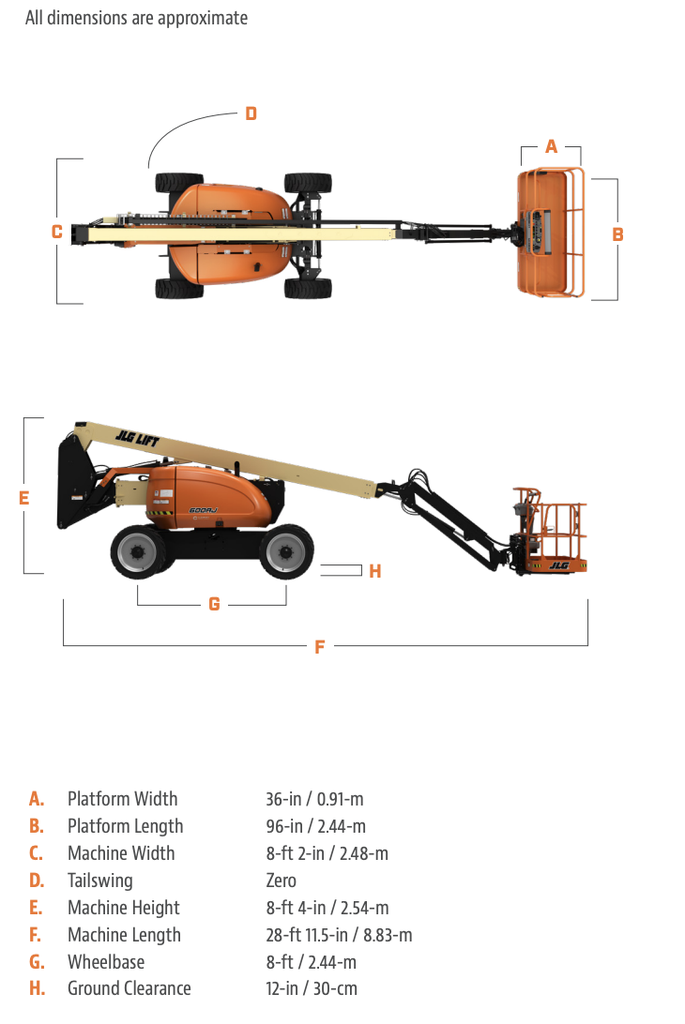

| Dimensions and weight | |
|---|---|
| Platform Height | 60,7 ft |
| Machine Width | 36 in, 8,2 ft |
| Platform length | 96 in |
| Platform capacity (Restricted) | 500 lbs |
| Machine Weight | 22 691 lbs |
| Machine Height | 8,4 ft |
| Machine Length | 29 ft |
| Ground Clearance | 12 in |
| Tires | |
|---|---|
| Tires | Non marking |
| Traction | 4WD |
| Tags | |
|---|---|
| Tags | |
